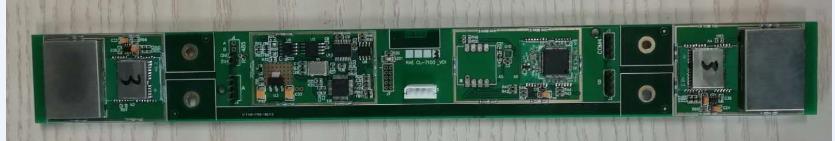

Project Profile: CXRTK-A is a highly integrated GPS L1 & Beidou B1I dual-band communication base station antenna industrial measurement board. The board integrates azimuth and downtilt measurement modules and provides high latitude and longitude information. The use process is convenient and fast. It only needs to be installed on the carrier which is capable of receiving the GNSS signal. And the key work parameter measurement of the communication base station antenna can be completed without an external GNSS antenna. Furthermore, it can also provide OEM customized service for the relevant communication base station enterprises.
|
Parameter |
Precision index |
|
Latitude and Longitude Accuracy |
5 m（RMS） |
|
Altitude Accuracy |
10 m（RMS） |
|
5 m（RMS） |
|
|
Azimuth Accuracy |
< 5 degree（2RMS） |
|
Downtilt Accuracy |
±1 degree |
|
Initial Positioning Time |
40 s |
|
Initial Orientation Time |
180 s（2RMS） |
